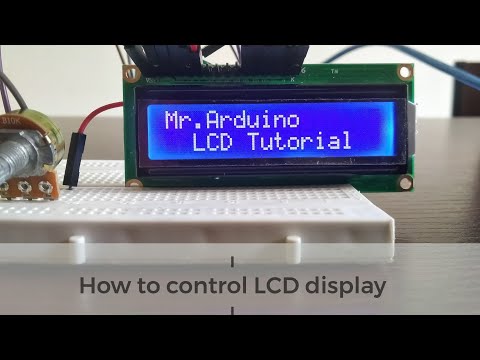

How to control LCD display


Materials:-
Diagram:-

Connections:-

LCD display to arduino
  • Vss = Arduino GND
  • VDD = Arduino 5V
  • V0 = Potentiometer center pin
  • RS = Digital pin  9
  • RW = Arduino GND
  • E = Digital pin 8
  • D4 = Arduino digital pin 4
  • D5  = Arduino digital pin 3
  • D6 = Arduino digital pin 2
  • D7 = Arduino digital pin 1
  • A = Arduino  5V
  • K = Arduino GND
Potentiometer to arduino
  •   Left pin  = Arduino GND
  •   Right pin = Arduino 5v
  •  center pin = Display VO
Downloads:-

LCD display library(LiquidCrystal.h) = http://bit.ly/2VeF5xt


Code :-

 #include <LiquidCrystal.h>//Include LCD library

 LiquidCrystal lcd(9,8, 4, 3, 2, 1);// initialize the library with the numbers of the interface pins

 void setup() {
  lcd.begin(16, 2);
  lcd.print("Mr.Arduino");// Print a message to the LCD.
}

 void loop() {
  lcd.setCursor(0, 1);
  lcd.print("  LCD Tutorial");//Print a message to second line of LCD

}
